Plotters: CDY 1 Technology in the Transition from Design to Production

Maintaining competitiveness in the global textile market depends on managing production processes flawlessly and with optimized costs. In a textile factory, efficiency begins the moment the fabric leaves the warehouse and reaches the cutting table. At this critical juncture, the fabric spreading machine plays a vital role as the fundamental element determining the quality standard for the rest of the production line. As Alser Technology, we provide high-tech solutions to textile manufacturers across Turkey with our new-generation spreading systems developed at our modern production facility in Akyazı, Sakarya.

What is a Fabric Spreading Machine?

A fabric spreading machine is an automated system that ensures fabrics—whether in rolls or relaxed form—are spread onto the cutting table according to the predetermined marker length. These machines are not merely transport vehicles; they are automation solutions that neutralize static electricity on the fabric, balance tension, and perform millimetric edge alignment. A modern spreading unit consists of a spreading head, drive motors, a PLC control panel, and a fabric feeding system.

What is the Function of a Fabric Spreading Machine?

The fabric spreading machine manages the fundamental preparation stage of the textile production line. Its functions can be summarized under the following technical headings:

Accurate Marker Preparation: The success of the automatic cutting (Cutter) stage depends on the fabric being spread smoothly on the table. The spreading machine minimizes cutting errors by preventing shifts between layers.
Precision Tension Management: Lycra and elastic fabrics, in particular, can stretch during manual spreading. Automatic systems spread the fabric with "zero tension," preventing shrinkage issues that may occur after cutting.
Reduction of Waste Rates: Electronic edge control and programmable marker lengths reduce fabric waste to a minimum.
Acceleration of Operational Processes: It eliminates time losses in production by completing spreading operations, which take a long time with manual methods, in much shorter durations.
Occupational Safety: It creates a safer working environment by reducing the need for heavy fabric rolls to be carried by physical force.

Alser Spreading Systems: Technical Features

High-Speed Spreading (APS 1 PS Series): Adapts to intensive work schedules with speeds up to 105 m/min and flexible working widths (160 cm - 220 cm).
Advanced Material Control: Features smart tension control via sensors and conveyor-belted servo motors to prevent material deformation.
Digital Integration: Fully compatible with industry-standard CAD software (iBrightcut, iPlycut, Smartcut) and supports DXF, PDF, and HPGL formats.

Part 2: Professional Solutions in Fabric Cutting

The fundamental elements determining competitiveness in the global textile market are speed, low operational costs, and high precision. Technologies used in the cutting stage—the starting point of the production line—directly impact the final product's quality and the enterprise's long-term profitability. Today, automatic fabric cutting machines (Cutters), replacing manual methods, raise production standards by minimizing error margins. The ALC9 and ALCUT 7 series, developed at our production facility in Akyazı, Sakarya, are professional solutions that optimize these advantages with their technical specifications.

Key Advantages of Industrial Cutting Systems

A modern fabric cutting machine is not just a cutting tool; it is an automation hub that transforms digital data from the design office into a physical product. The primary advantages these systems offer to textile enterprises include:

1. High Cutting Capacity and Ply Efficiency

Industrial cutting machines compress fabric layers into a single block using powerful vacuum technology. This allows the blade to move through layers without deviation.

ALCUT 9 Model: Offers an extraordinary under-vacuum cutting capacity of 9 cm, allowing for more pieces in a single operation. It maximizes time savings, especially for high-volume factories.
ALCUT 7 Model: Exhibits high performance in flexible production lines with a 7 cm capacity. This advantage increases the number of pieces produced per unit of time while reducing labor costs per ply, effectively multiplying production volume.

2. Millimetric Accuracy with Precision XY Transmission

The mobility and consistency of the cutting head are critical for piece alignment during the sewing stage. The precision XY transmission (gear and rack) system used in the ALCUT series operates without mechanical deviation, even under long-term and intensive use.

Accuracy: This system completely eliminates size differences between the top and bottom layers of the spread.
Stability: The robust chassis and precise gear system prevent vibration even at high speeds, preserving cutting quality and solving the issue of mismatched pieces during assembly and sewing.

3. Smart Automation Features and Operational Continuity

Uninterrupted production is only possible if the machine can manage its own operational health. Alser cutting machines are equipped with smart modules that reduce operator intervention:

Automatic Blade Sharpening: Ensures the blade remains at ideal sharpness during operation, guaranteeing clean edges and preventing fiber pulling.
Blade Cooling Unit: Controls heat generated by high-speed friction. It prevents technical textile materials (synthetic, coated, or adhesive) from sticking to the blade, thereby reducing waste rates.

4. Digital Flexibility and Universal Software Compatibility

The success of a cutting machine is measured by how quickly it integrates with existing design infrastructure. Alser systems are 98% compatible with fabric CAD software available on the market.

Format Support: Supporting universal formats such as DXF, PDF, PLT, CUT, TAC, and HPGL allows data from different design offices to be processed directly.
Fast Editing: The software interface enables last-minute edits on cutting files, increasing production flexibility.

Technical Strength of ALCUT 9 and ALCUT 7 Models

Both models are designed with a focus on durability and low-cost performance:

Two-Piece Modular Chassis: Greatly facilitates logistics and installation. This structure allows passage through narrow spaces and record-fast installation times.
Energy Optimization: Operating with low energy consumption (16-25 kW), the ALCUT series provides high performance while optimizing operational costs.
Advanced Vacuum Control: Powerful vacuum pumps secure the fabric with precise pressure, preventing even the smallest pieces (collars, cuffs, etc.) from shifting during cutting.

Part 3: Professional Solutions in Design and Pattern Plotting

In textile production, transforming a design into a physical template is one of the most critical stages for an error-free production line. Plotters, which ensure the accurate and rapid visualization of patterns on paper before they are transferred to fabric, are indispensable equipment for modern design offices. At Alser Technology, we optimize the transition from design to production with high speed and precision through our CDY 1 Drawing Plotter, offered from our production facility in Akyazı, Sakarya.

What is a Plotter and Its Importance in Production?

A plotter is a high-precision printer that transfers digital patterns and marker plans prepared in Computer-Aided Design (CAD) software onto specialized paper. Unlike standard printers, it has the ability to print continuously on very wide rolls of paper. An accurate plotting process is the fundamental requirement for preventing fabric waste during the cutting stage and ensuring that pieces fit together perfectly during the sewing stage.

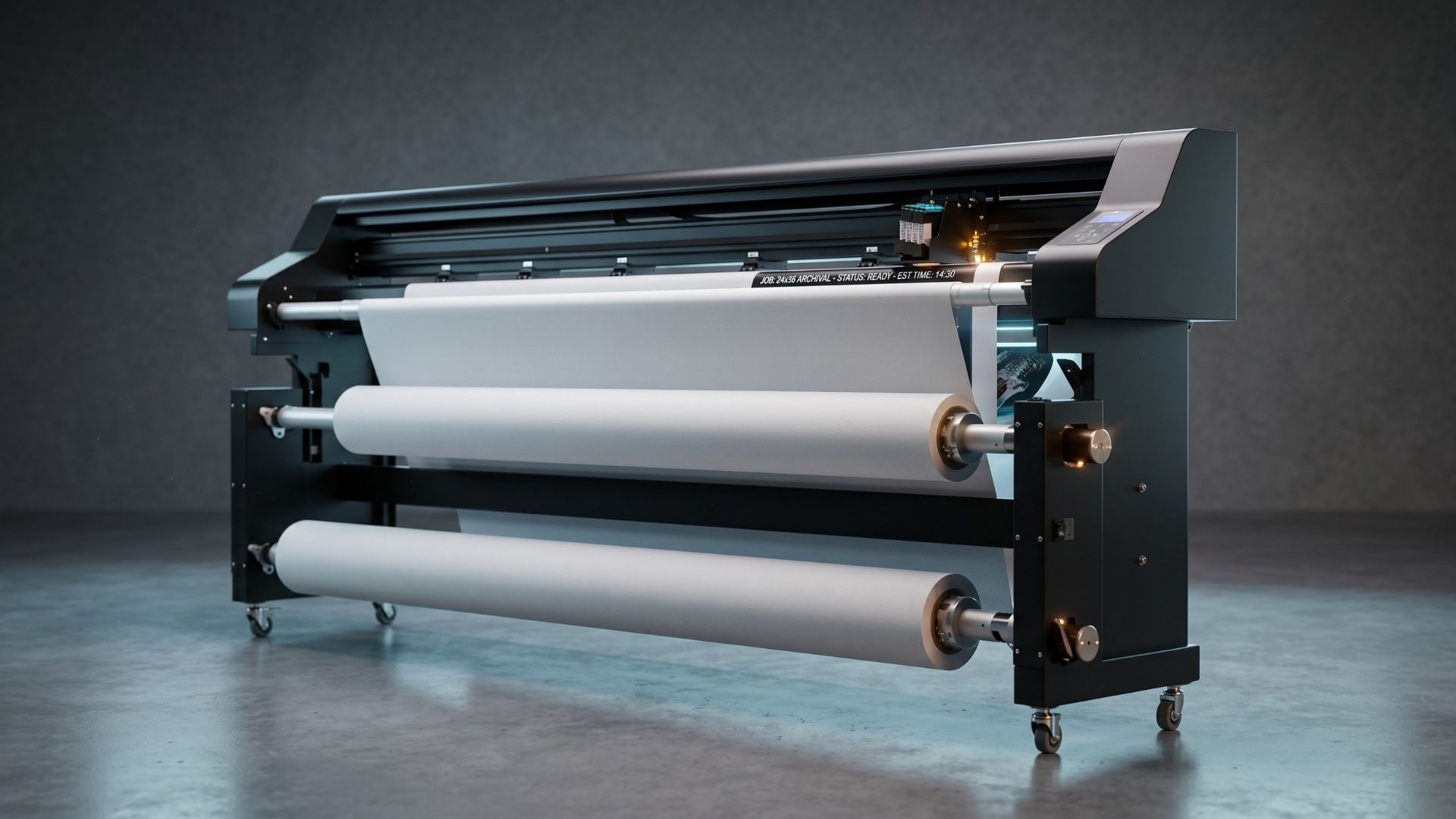

High-Speed and Quiet Performance with the CDY 1 Plotter

Developed to increase the efficiency of design offices, the CDY 1 stands out with its operational speed and quiet operation principle. It performs at high levels without interrupting the workflow, even in the most intensive production schedules.

1. Capacity and Plotting Speed

The CDY 1 provides businesses with a time management advantage, reaching plotting speeds of up to 100 square meters per hour. Offering a wide plotting area between 200 cm and 220 cm, this system can transfer even large-scale marker plans to paper accurately in a single pass.

2. Dual-Cartridge Powerful System

The system draws its power from two H-P 45 cartridge plotting heads. This hardware enhances both drawing quality and reliability. One of the most significant advantages of the CDY 1 is its ability to continue plotting with a single cartridge even if one runs out. This function prevents urgent tasks from being interrupted and maintains production continuity.

Smart Integration and User Experience

In digitalized production processes, the compatibility of hardware with software and network infrastructure is critical. The CDY 1 facilitates this harmony through its smart features:

Network Connection Support: Multiple pattern makers or designers can easily send their plotting tasks to the plotter over the network. This feature prevents office clutter and creates a centralized workflow.
Digital Control Panel: The integrated digital screen allows for easy command management. Operational settings can be carried out quickly thanks to its user-friendly interface.
Universal Software Compatibility: Fully supporting industry-standard HPGL and PLT file formats, the CDY 1 works in perfect harmony with almost all CAD software on the market.

Comfortable Operational Design

Workplace comfort is a factor that directly affects productivity. The CDY 1 is optimized for office environments:

Low Noise Level: Despite working at high speeds, it offers low noise levels to avoid disturbing office comfort.
Automatic Paper Cutting: The automatic paper cutting system, which activates once the plotting process is complete, eliminates the need for operator intervention. The ready marker paper can be quickly transferred to the next stage.

Efficiency in Design Offices

The CDY 1 Drawing Plotter shortens the path from design to the production line with its speed and smart features. This technology, offered by Alser Technology, reduces error margins in the design room processes of textile enterprises while increasing operational speed. With its robust mechanical structure and digital flexibility, the CDY 1 meets all the requirements of modern production.

For technical information and solutions to optimize your production line, please contact our expert team.
